Independent machinery sourcing · RFQ

rubber vulcanizing press

Rubber Vulcanizing Press Sourcing is an independent sourcing partner for US buyers who need a rubber vulcanizing press sized to a named mold, cavity load and cure schedule. Share platen size in mm, daylight in mm, quantity and destination so we can request comparable factory wholesale quotes. This site does not sell from stock and does not claim original-equipment identity. A laboratory press catalog published for 2025 is a field checklist, not this service’s production promise. Adjacent mixing mills or injection presses are out of scope here.

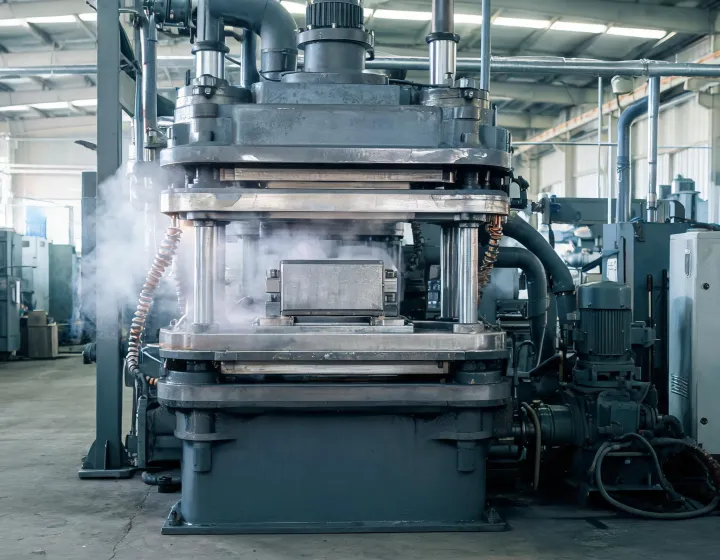

Heated rubber vulcanizing press platens closing on a mold in a rubber shop Request Factory Quotes

Resolve procurement unknowns

Known input
Mold plan size, mold mass, cavity layout, rubber compound, validated cure temperature and dwell, quantity and US destination.
Supplier confirmation
Restated platen size in mm, daylight in mm, heating method, temperature measurement locations and how force is applied through that mold—not a hydraulic-pressure figure used as if it were total force.

Resolve procurement unknowns

A rubber vulcanizing press RFQ is useful when mold envelope and cure steps are written before factories guess. Frame or column geometry follows mold size, mass and cavity load; daylight is remaining opening around that tool, not a catalog photograph. We collect those splits so manufacturers quote the same envelope rather than mixing a laboratory hot-press rating with a production press.

Known input
Buyer drawing or process description: compound family, loading method, venting or exhaust steps, and whether the press must hold pressure during a long dwell.
Supplier confirmation
Platen uniformity method with the actual mold, pressure-holding behavior, connected load in kW, three-phase supply voltage and frequency in Hz, cooling water if platens are cooled, and footprint in mm.

Documents before quotation for a rubber vulcanizing press

  • Drawing or process description

    Send mold length, width, height and mass, cavity count, projected area if known, and who owns the mold design. Feedstock is the rubber compound and insert package, not a generic “rubber part.” Distinguish the press, the mold and the cure recipe when they come from different parties.

  • Operating conditions

    State cure temperature, dwell, venting or exhaust steps, duty cycle (shifts and changeovers), and whether vacuum, cooling or automatic mold handling is expected. Connected load and work envelope around platens belong on this list.

Missing mold mass or an unvalidated cure schedule means factories cannot size daylight or heating. Mark unknowns instead of inventing force units. Optional budget (currency, per-unit or whole-order) and supplier preference (premium, mid-range, budget-friendly, or not sure) are buyer selections, not verified factory ratings.

Which procurement scope is covered by rubber vulcanizing press?

What mold size, mass and cavity load define the press frame and daylight?
Connections to confirm
Interface Buyer input
Electrical Three-phase supply voltage, frequency in Hz and connected load in kW for the hydraulic pack, platen heaters and any vacuum pump. Omit invented kW.
Utilities Cooling water if platens or oil coolers are in scope; compressed air if ejectors or safety gates use it; extraction if the compound off-gasses during venting.
Controls PLC interface names, temperature-loop count, exhaust-step programming and any handshake with upstream mills or downstream trim. Protocol labels without I/O maps are incomplete.
Which responsibilities remain with the equipment supplier and buyer?

The buyer supplies mold data, compound, destination and whether FAT witness travel is required. The factory restates platen size, daylight, heating arrangement and included items. Rubber Vulcanizing Press Sourcing coordinates comparable quotes; engineering acceptance remains between buyer and named supplier. SAT travel is extra unless written in. Read mold and cure notes before treating two sheets as the same machine.

Send site interfaces with the rubber vulcanizing press enquiry

Discuss Your Requirements
